7 layer bubble film machine -5 screw extrusion

YIHAI MACHINERY Co., LTD is located in Pingyang,wenzhou ,zhejiang province . It Is a innovative enterprises integrating research and development, production. Specialized in the production of air bubble film machine, laminating machine, stretch film machine,film blowing machine, bag making machine, printing machine and plastic packing machinery. Products are approved by CE certification.And the products are exported to overseas.

Detail

Inquery

The machine is suitable for LDPE and LLDPE particles

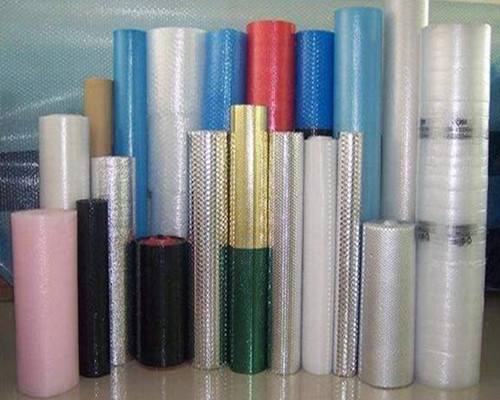

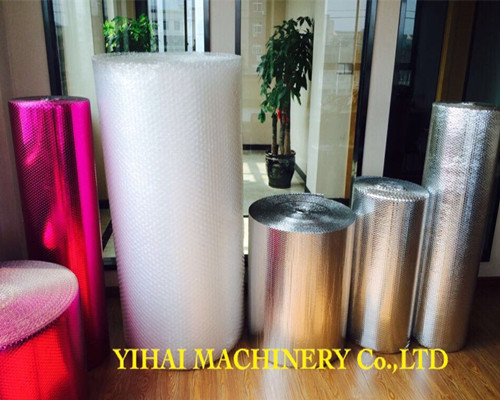

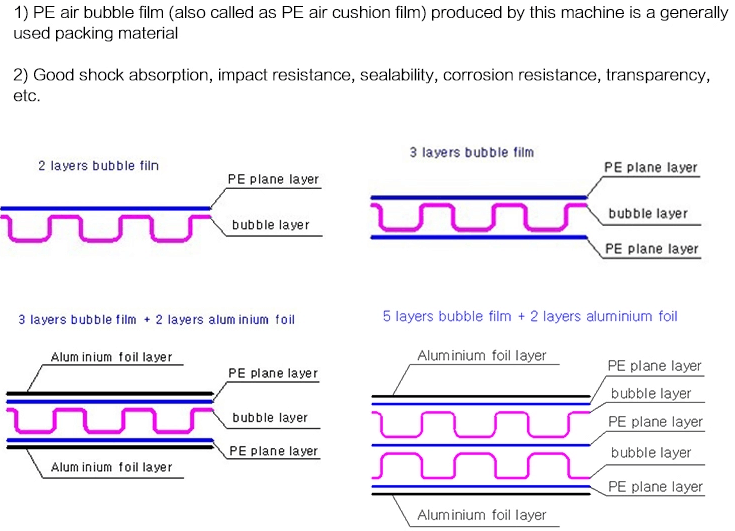

The machine can produce 2-7 layers of bubble film (5 layers bubble film +2 layers PET aluminum film), can produce bubble film compound kraft paper, pearl cotton, PET aluminum film, co-extrusion film and other products. 16. The diameter of the bubble in this table is 6-30mm with the change of the flower roller. The products are waterproof, anti-pressure, anti-static, heat insulation and other functions, widely used in furniture, hardware, building materials, electronics, express packaging industry.

MODEL	MAX.WIDTH	DIA. SCREW	SCREW L:D	CAPACITY (kg/h)	SPEED	TOTAL POWER	CONSUMPTION POWER	WEIGHT
YHPEG-S1200B	1200mm	60/50/50/60/50	32：1	110-160	600-1300	190KW	65-75KW	5.5-6.5T
YHPEG-S1500B	1500mm	65/55/55/65/55/	32：1	150-230	600-1300	248KW	90-100KW	5.5-6.5T
YHPEG-S1600B	1600mm	65/55/55/65/55/	32：1	150-230	600-1300	248KW	90-100KW	5.5-6.5T
YHPEG-S1800B	1800mm	70/55/55/70/55	32：1	180-260	600-1300	288KW	100-115KW	6-7.2T
YHPEG-S2000B	2000mm	75/60/60/75/60	32：1	200-300	600-1300	328KW	100-125KW	6.5-8T
YHPEG-S2200B	2200mm	80/65/65/80/65	32：1	250-330	600-1100	358KW	125-135KW	7-8.5T
YHPEG-S2500B	2500mm	85/70/70/85/70	32：1	250-390	500-1100	388KW	130-145KW	9-10T
YHPEG-S3000B	3000mm	100/85/85/100/85	32：1	300-430	500-1000	430KW	140-160KW	11T
YHPEG-S3500B	3500mm	110/95/95/110/95	32：1	350-480	500-1000	470KW	150-190KW	12T

We are focus on providing high-tech manufacturing&solution for air bubble film machine,we have a professional team to combine the R&D,manufacturing,marketing&sales service from establishment

We produce 2 layers & 3 layers air bubble film machine,5 layers & 7 layers air bubble aluminized film machine which can produce 1000mm -3600mm wide production

Our pholosophy is to manufacture reliable,innovative machinery to global customers,such as China mainland,USA,England,Spain,Bulgaria,Turkey,Korea,India,Vietnam,South africa and so on

We have professional sales team,an experienced manufacturing team & a strong after-sales service team to earn the market,created a supreme Yihai brand for air bubble film machine

Product Application

ain Features

Detailed Images
