2 layer bubble film machine - twin screw extrusion

YIHAI MACHINERY Co., LTD is located in Pingyang,wenzhou ,zhejiang province . It Is a innovative enterprises integrating research and development, production. Specialized in the production of air bubble film machine, laminating machine, stretch film machine,film blowing machine, bag making machine, printing machine and plastic packing machinery. Products are approved by CE certification.And the products are exported to overseas.

Detail

Inquery

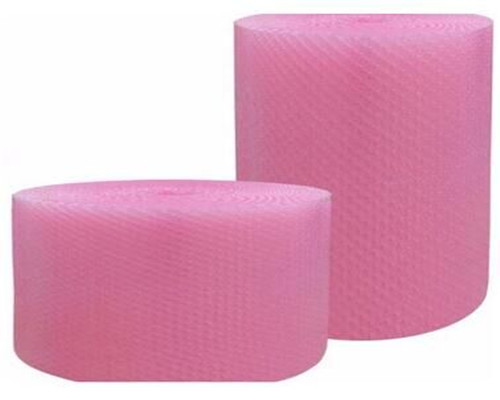

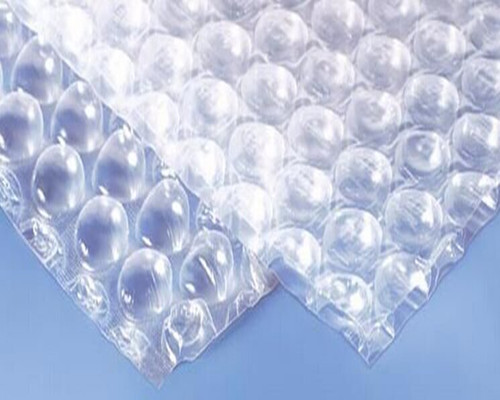

The machine can produce 2 layers of bubble film, extruder for twin screw design. The advantage of the twin screw design is that the bottom layer and bubble layer can be controlled separately, so as to achieve simple operation, fast speed, beautiful products and other characteristics.

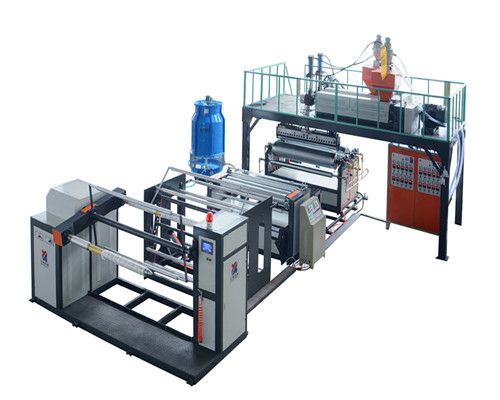

The main raw materials are LDPE and LLDPE particles. Main components: hopper - extruder - die head - bubble forming die - traction roll - flattening roll - winder - control box

Optional equipment:

1.Chiller

2.Automatic Vacuum Feeder

3.Auto Changing Sieve

4.Blender

5.Scrap Reverse

6.Grinder

7.Auto Rewinder

8.In-line perforated unit

MODEL	MAX.WIDTH	DIA. SCREW	SCREW L:D	CAPACITY (kg/h)	SPEED	TOTAL POWER
YHPE-1500	1500mm	65/55	32：1	70-100	700-1800	95KW
YHPE-1600	1600mm	65/55	32：1	70-110	700-1800	98KW
YHPE-1800	1800mm	70/55	32：1	90-130	700-1800	110KW
YHPE-2000	2000mm	75/60	32：1	100-150	700-1500	130KW
YHPE-2200	2200mm	80/65	32：1	110-180	700-1500	150KW
YHPE-2500	2500mm	85/70	32：1	130-200	600-1300	160KW
YHPE-3000	3000mm	100/85	32：1	150-250	600-1200	180KW
YHPE-3500	3500mm	110/95	32：1	160-280	600-1200	200KW

Technical parameters:

model	Screw(mm)	Width(mm)	Production(kg/h)	power(kw)	Screw Length : diameter
YHPEG-3000	Φ100x3	3000	280	230	32:1
YHPEG-2500	Φ90x3	2500	200	200	32:1
YHPEG-2000	Φ75x3	2000	170	140	32:1
YHPEG-1800	φ85,70	1800	120	120	32:1
YHPEG-1600	Φ80,60	1600	100	110	32:1
YHPEG-1500	Φ75,60	1500	90	110	32:1
YHPEG-1200	Φ70,55	1200	70	82	32:1
YHPEG-1000	Φ65,55	1000	70	82	32:1

Our Machines World Wide:

America,England,Spain,Bulgaria,Tunisia, India , Vietnam, Philippines, Singapore, Isreal, Turkey, Iran, Russia, Paraguay, Brazil, Canada, Tanzania etc.

Our Bubble film production Range: from Width 1000mm To 3600mm (3.6meter width finished film)
